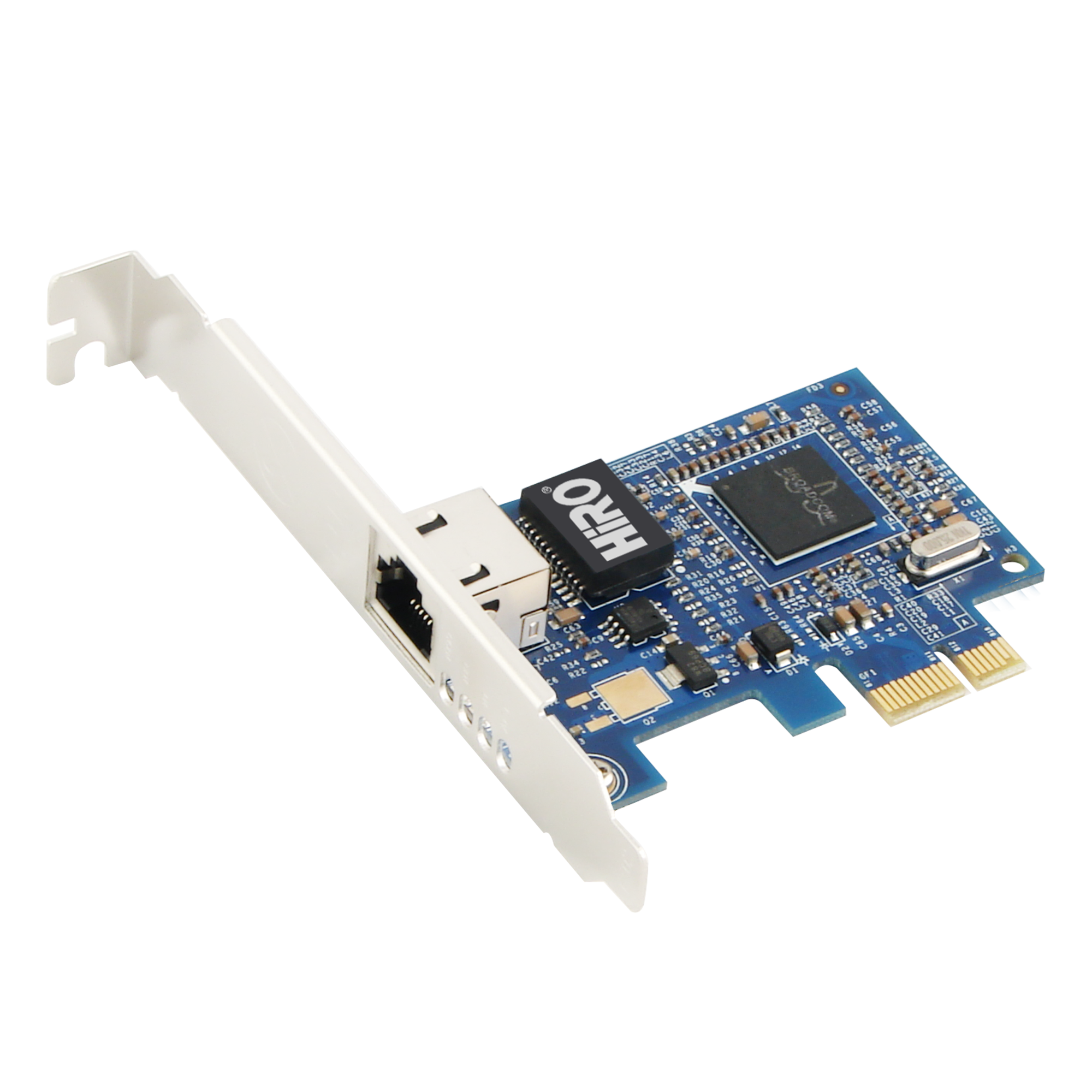

HiRO H50356 Broadcom 10/100/1000BASE-T Controller Integrated Transceiver Internal PCI Express PCIe PCI-E x1 Gigabit Ethernet Card RoHS Windows 10 8.1 8 7

Manufacturer CodeH50356

HiRO H50356 Broadcom 10/100/1000BASE-T Controller Integrated Transceiver Internal PCI Express PCIe PCI-E x1 Gigabit Ethernet Card RoHS Windows 10 8.1 8 7

HiRO H50356 10/100/1000BASE-T w Transceiver PCIe Gigabit Card Windows 10 8.1 8 7

The HiRO H50356 is a fully integrated Broadcom 10/100/1000BASE-T Gigabit Ethernet media access control and physical layer transceiver solution for high-performance network applications. The HiRO H50356 combines a triple-speed, IEEE 802.3 compliant media access controller (MAC), PCI Express bus interface, on-chip buffer memory, and integrated physical layer transceiver in a single device. The HiRO H50356 is fabricated in a low voltage silicon process, providing an ultra-low power solution. By itself, the HiRO H50356 provides a complete single-chip Gigabit Ethernet NIC or LOM solution. The HiRO H50356 includes a 10/100/1000-Mbps Ethernet MAC with full-duplex and half-duplex capability at all speeds. Support for the following 802.3 functions is featured in the MAC:

HiRO - Your Reliable Connection!!

Features and Benefits:
Truly plug n play - Plug and Play, no driver installation needed for Windows 10 8.1 8 Windows 7 Compatible (Require driver installation)
WOL supported - Allow Wake on LAN and diskless operation
Remote Power on/off - allows remote power on/off computers

‧ VLAN tagging
‧ Layer 2 priority encoding
‧ Full-duplex flow control

The transceiver is fully compatible with the IEEE 802.3 standard for auto-negotiation of speed. Additionally, several Plug-and-Play enhancements are included to make the device even more user-friendly. A unique integrated cable analyzer feature allows a user to self-diagnose any issues with the network cabling that could affect the host machine. A link quality indicator LED and a GUI application give installers an instant visual indication of problems. This includes physical wiring defects or channel conditions, such as excessive cable length, return loss, crosstalk, echo, and noise.

Target applications of the HiRO H50356:
‧ Server PC NIC
‧ Server PC LOM

Software drivers available:
‧ Windows 10 8.1 8 7

‧ Single-chip device for server LAN-on-Motherboard (LOM) or network interface card (NIC) applications
‧ Integrated 10/100/1000BASE-T transceiver
‧ 10/100/1000BASE-T triple-speed MAC
‧ High-speed RISC core with 24-KB cache
‧ SMBus 2.0 controller
‧ On-chip voltage regulation
‧ Wake-on-LAN (WOL) power switching circuit
‧ PCI Express host interface
‧ 1x lane
‧ Four-pin interface
‧ Functionality identical to PCI
‧ Performance features
‧ TCP, IP, and UDP checksum
‧ Microsoft Large Send Offload
‧ Large burst read
‧ Interrupt coalescing
‧ Industry-compliant manageability features
‧ IPMI 1.5 support
‧ Standards-compliant WOL
‧ Innovative out-of-box mode WOL
‧ Hardware power switching
‧ 3.3V I/Os (5V tolerant)

‧ Wirespeed performance increases user performance
‧ PCI Express provides wirespeed non-blocking throughput
‧ TCP/IP offloads significantly reduce utilization of CPU
‧ TCP/IP offloads significantly increase throughput to enable faster downloads of large files
‧ Industry's smallest GbE form factor enables easier motherboard design
‧ Innovative design reduces footprint to 67% smaller than competing solutions
‧ Integrated WOL switching eliminates external power switching components
‧ IPMI 1.5 remote manageability reduces IT costs
‧ Support for standards-based manageability allows IT managers to receive automatic alerts when PC support issues occur
‧ Remote power-on/off features allow IT managers to power cycle PCs to address issues

Compatible for use with Windows 10 8.1 8 (Built-in Driver, Plug n Play) Windows 7 compatible (Require driver installation)

Warranty Policy:
Please contact your reseller within 30 days of the original invoice date for refund or replacement. Beyond 30 days, please contact Hiro Inc. within one year of the original invoice date for a replacement. Should an item require repair or replacement after a year, please contact Hiro Inc. for information regarding parts availability and cost. Physically damaged items cannot be returned.

For service or support:

Unit weight: 1.3oz / 0.08lb
Unit dimension 5*3*1 in
Package weight: 3oz / 0.19lb
Package dimension 6.75*4.25*1 in
Carton qty: 100pcs
Carton weight: 19lbs/carton
Carton dimension: 25*14*10 in
UPC 649258503569
